Machining and production

We have the latest CNC machines and technology that provide us with all types of machining and ability to make complex  sub-assemblies and assemblies according to the client's documentation.

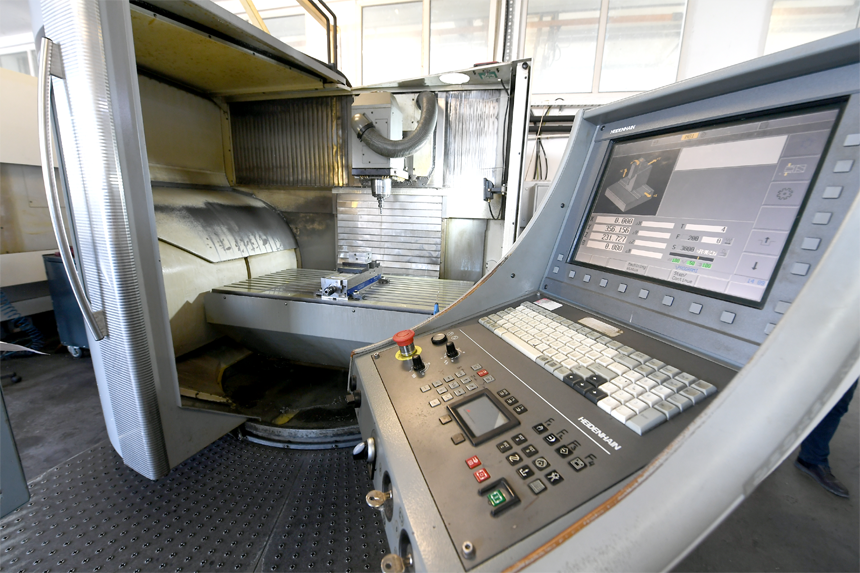

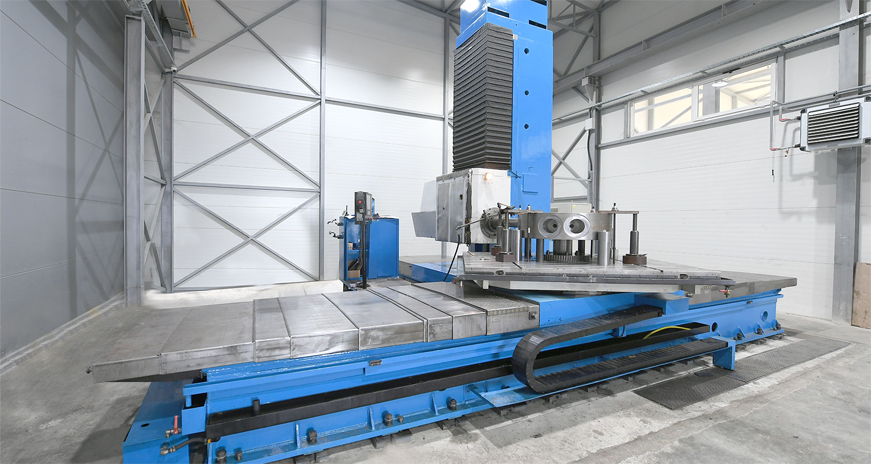

MILLING

Type

Maximal workpiece mm

Maximal table load kg

Precision mm

Conventional

100x800x500

100

0,05

CNC -3 axis

1050x800x500

900

0,01

CNC -5 axis

1250x850x850

1500

0,01

CNC Vertical

4500x2500x1500

12000

0,01




DRILLING

Type

Maximal workpiece mm

Maximal table load kg

Precision mm

Conventional

4500x2500x1000

12000

0,01

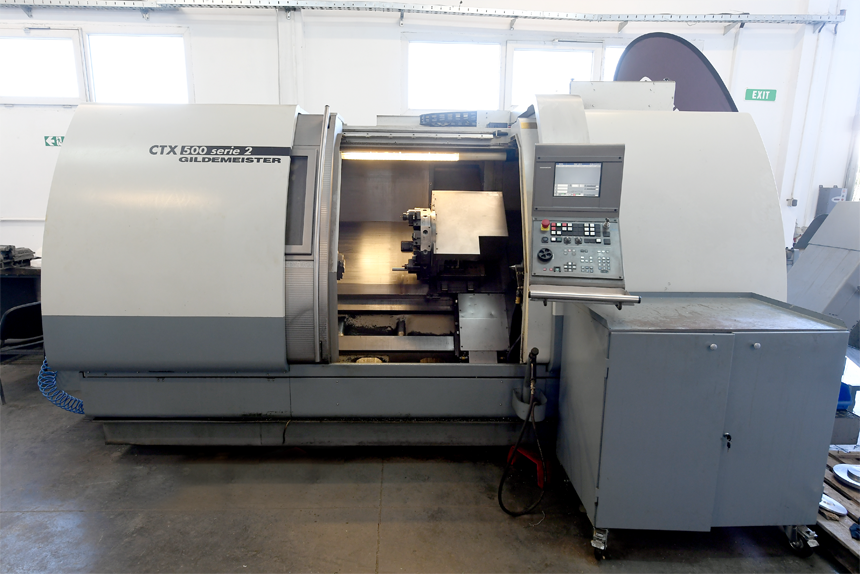

TURNING

Type

Maximal workpiece mm

Maximal table load kg

Precision mm

Conventional

Ø850x6000

1500

0,02

CNC with driven tools

Ø500x1000

500

0,01

CNC

Ø195x250

150

0,01



ELECTRO DISCHARGE MACHINING – EDM

Type

Maximal workpiece mm

Maximal table load kg

Precision mm

Wire edm

600x400x350

1000

0,003

Starting hole

350x250x350

350

0,2

GRINDING

Type

Maximal workpiece mm

Maximal table load kg

Precision mm

Conventional flat grinding

1000x500x350

700

0,005

Conventional cylindrical

Ø280x1000

400

0,005

CNC Profile-JIG Grinding

600x300x200

150

0,002

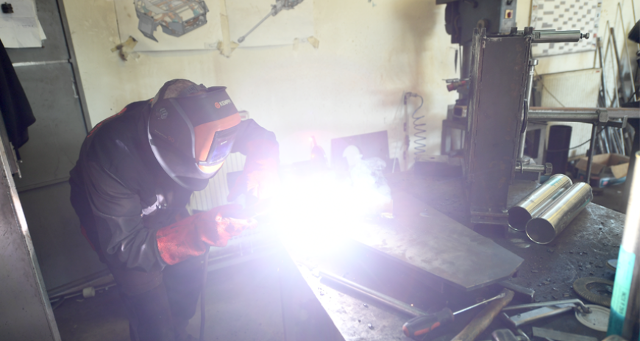

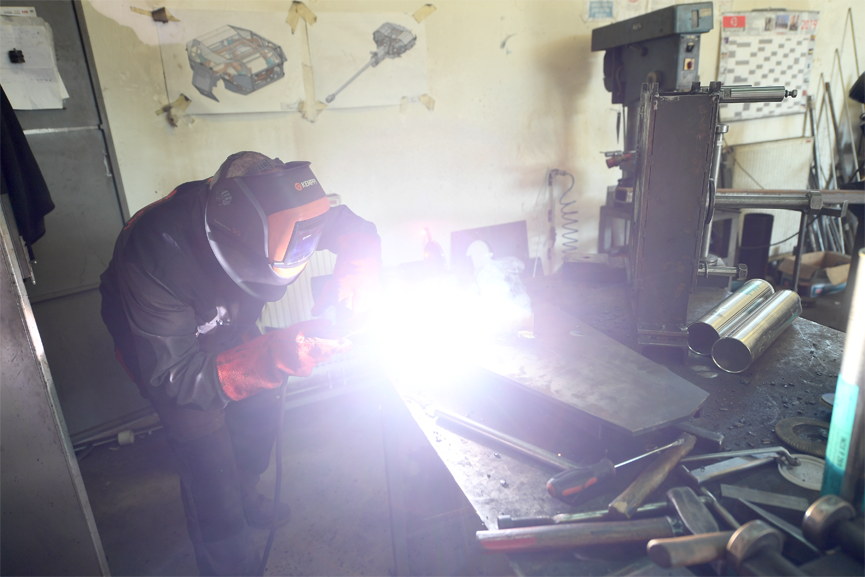

WELDING

Type

Material capabilities

GMAW-MIG

Carbon steel

GTAW - TIG

Alloy steel

SMAW - STICK

Aluminium



Stainless steel

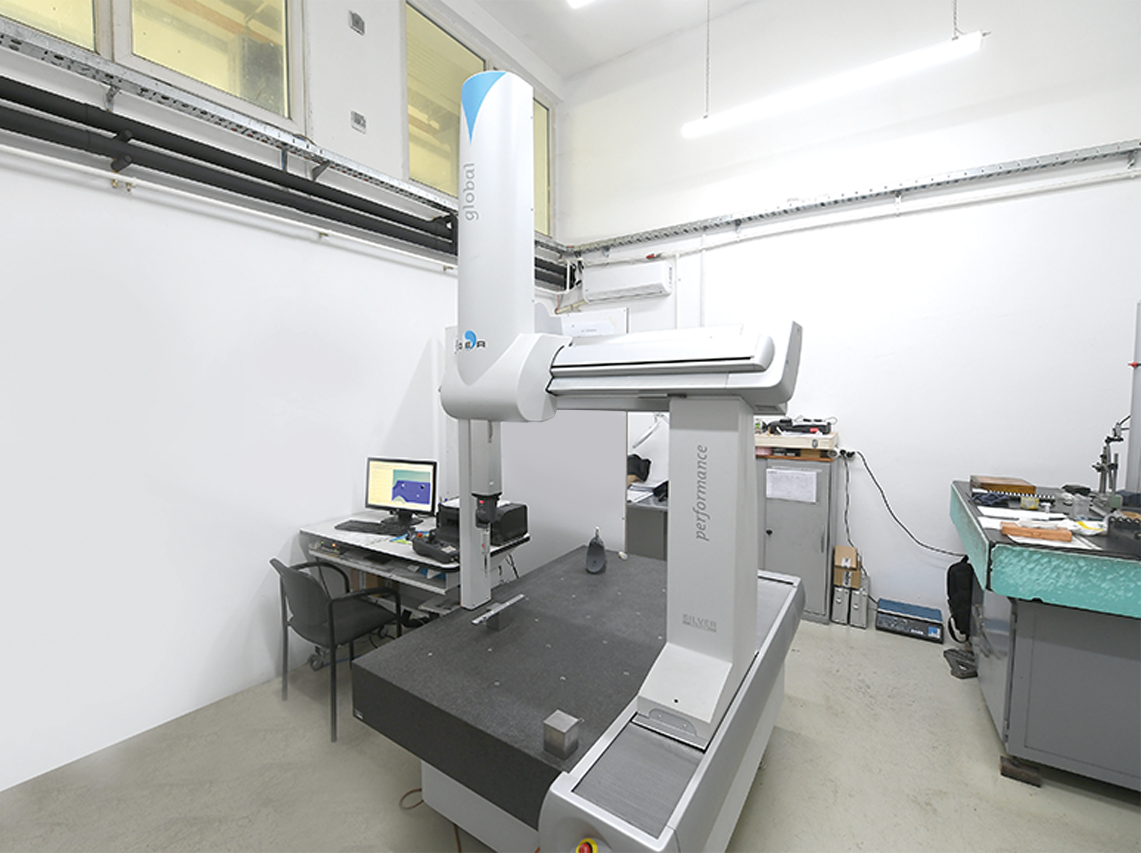

QUALITY CONTROL

Servoteh is highly equipped with top brands quality control measurement tools (Mitutoyo, Mahr, Tesa, DEA, Zoller) such as dimensional measuring, hardness testing equipment, surface roughness etc. All instruments and tools have been calibrated once per a year.
