- Workpiece diameter, max/min: Ø450/Ø40 mm
- Workpiece length, max: 3 600 mm
- Axial force, max: 340 kN
- Teilstock force: 60 kN
- Total power: 220 kW

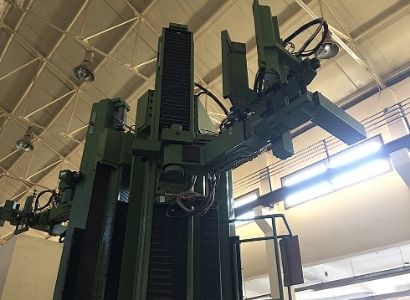

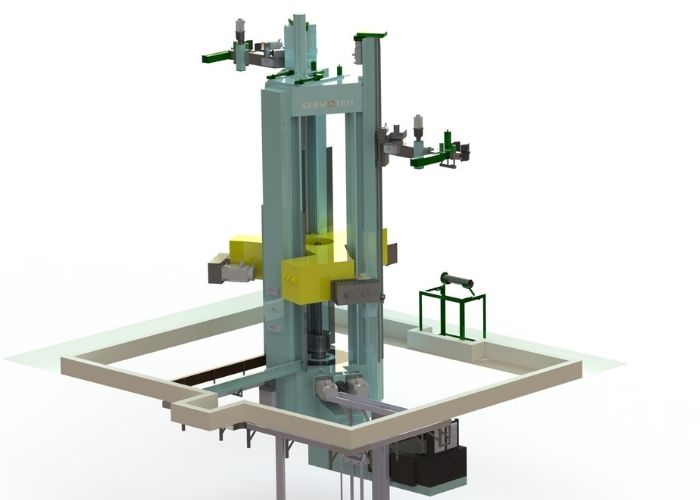

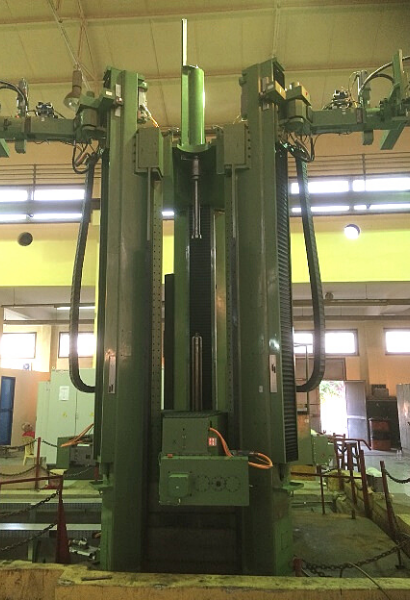

High-precision vertical machine for cold flow forming with three servo axes of the roller carrier symmetrically radially arranged. Machine has additional servo axis for axial movement of the support and completely automated insertion and removal of workpieces using two servo manipulators. The vertical orientation of the workpiece is extremely suitable for making parts of small diameter and large length. It is suitable for processing various materials such as steel and aluminium alloys.
Allows you to create parts:
- with constant thicknesses or variable wall thicknesses (eg. pipes, hydraulic cylinder pipes, custom profiles ...)
- parts with very precise internal contour
- parts with conical, concave and convex contours.
